VerticalPainted
Vertical Air Receiver 500L
Compact vertical receiver with a small footprint for industrial compressed-air systems.
- Capacity
- 500 L
- Working
- 11 Bar
- Test
- 48 Bar
- Motor
- 5-7.5 HP
Product Range
Compressedairtanksandpressurevesselsforeveryapplication
Standard and custom tanks from small oil-free vessels to 10,000-liter oversized vertical receivers, with working pressures from vacuum service up to 42 bar depending on specification.
Filter
VerticalPainted

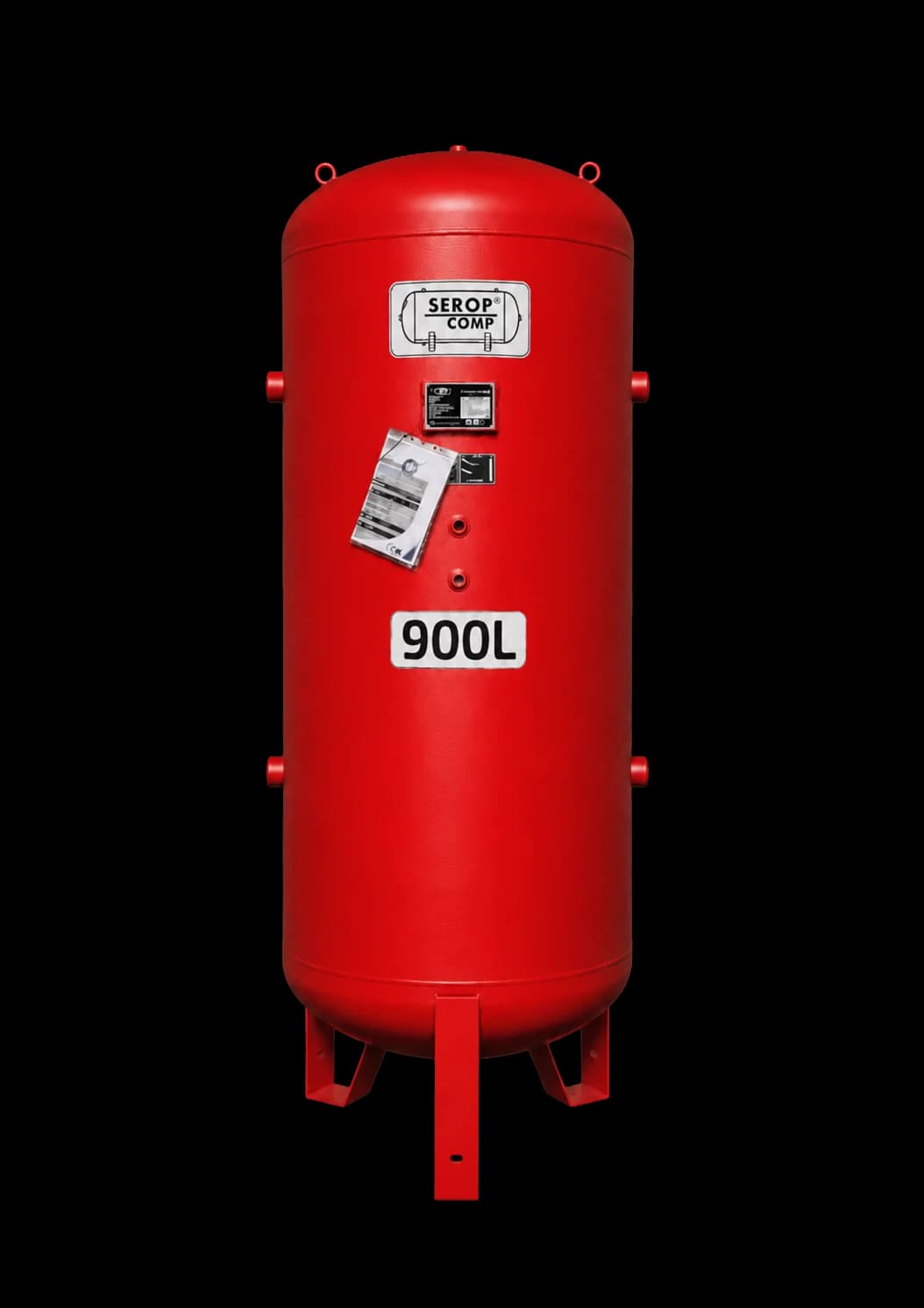

Vertical Air Receiver 900L
Vertical receiver with larger buffer volume for medium-duty compressed-air systems.
- Capacity
- 900 L
- Working
- 11 Bar
- Test
- 48 Bar
- Motor
- 7.5-10 HP
VerticalPainted
Vertical Air Receiver 1000L
Mid-capacity vertical receiver for continuous-duty compressed-air systems.
- Capacity
- 1000 L
- Working
- 11 Bar
- Test
- 48 Bar
- Motor
- 10-15 HP
VerticalPainted
Vertical Air Receiver 2000L
Large vertical receiver for high-flow industrial compressed-air demand.
- Capacity
- 2000 L
- Working
- 11 Bar
- Test
- 48 Bar
- Motor
- 20-30 HP
VerticalPainted

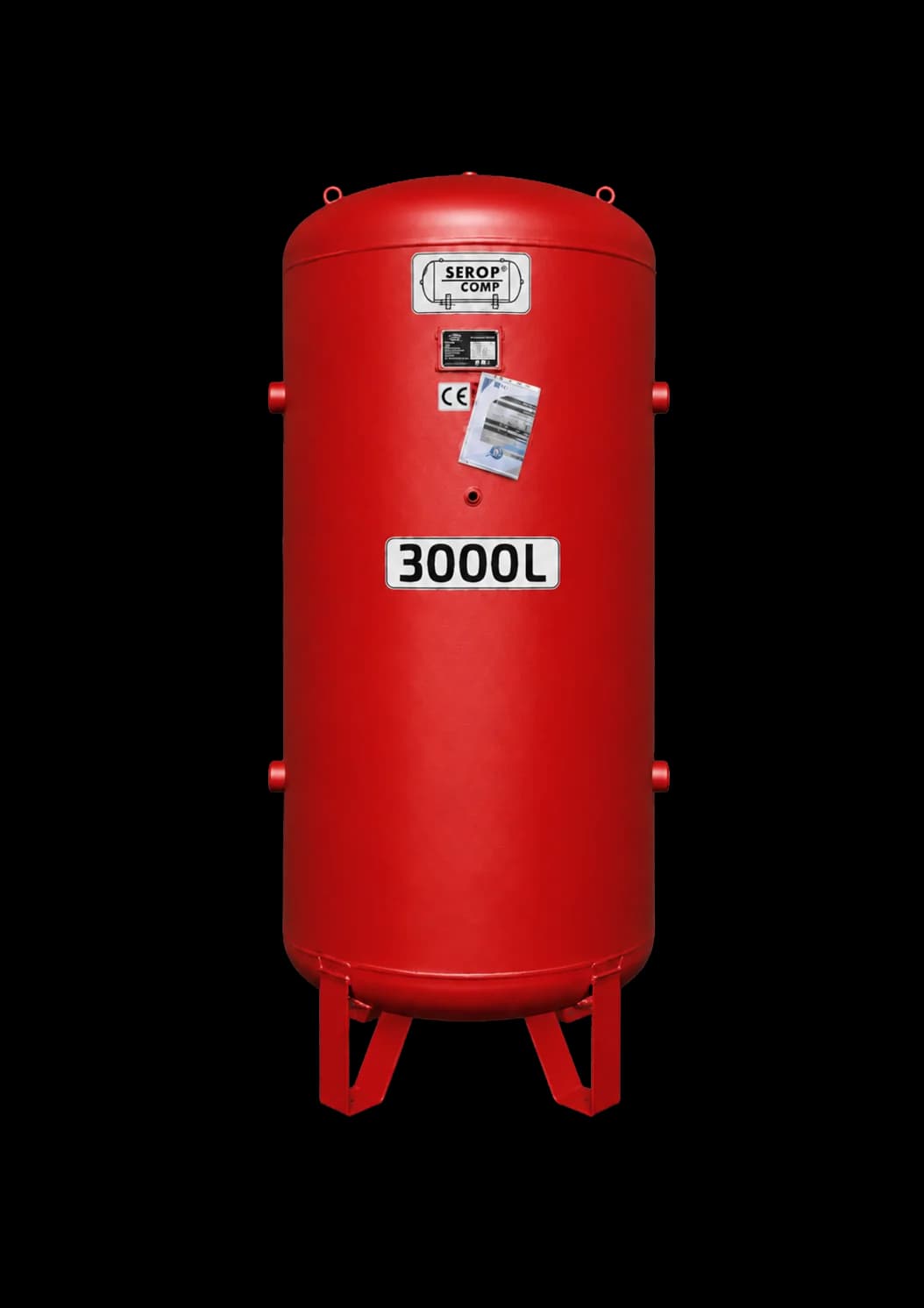

Vertical Air Receiver 3000L
Large vertical receiver for high-volume industrial compressed-air systems.
- Capacity
- 3000 L
- Working
- 11 Bar
- Test
- 48 Bar
- Motor
- 30-40 HP
HorizontalPainted

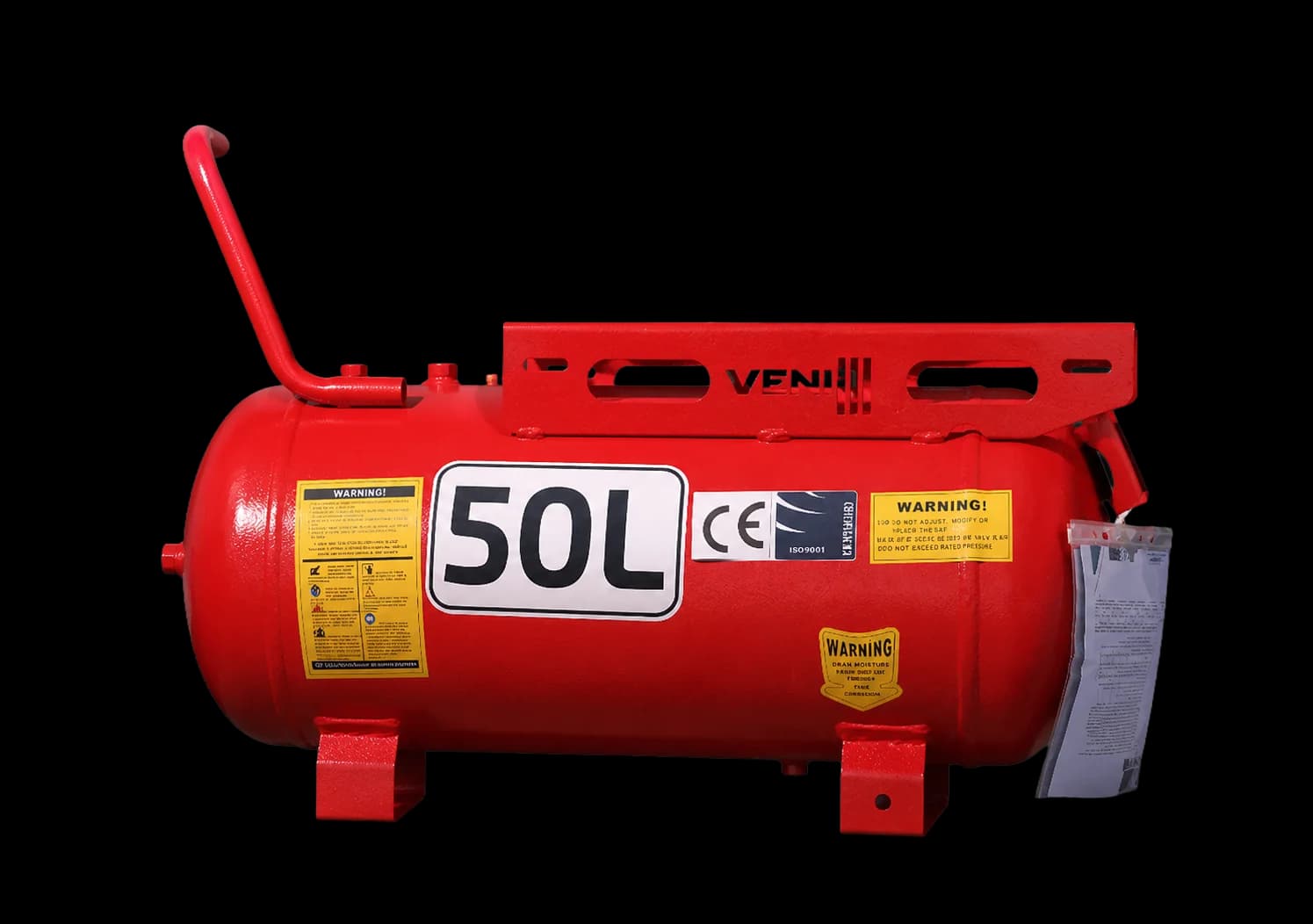

Horizontal Air Receiver 50L
Compact horizontal receiver for small compressor systems where vertical height is limited.
- Capacity
- 50 L
- Working
- 11 Bar
- Test
- 48 Bar
- Motor
- 1–1.5 HP
HorizontalPainted

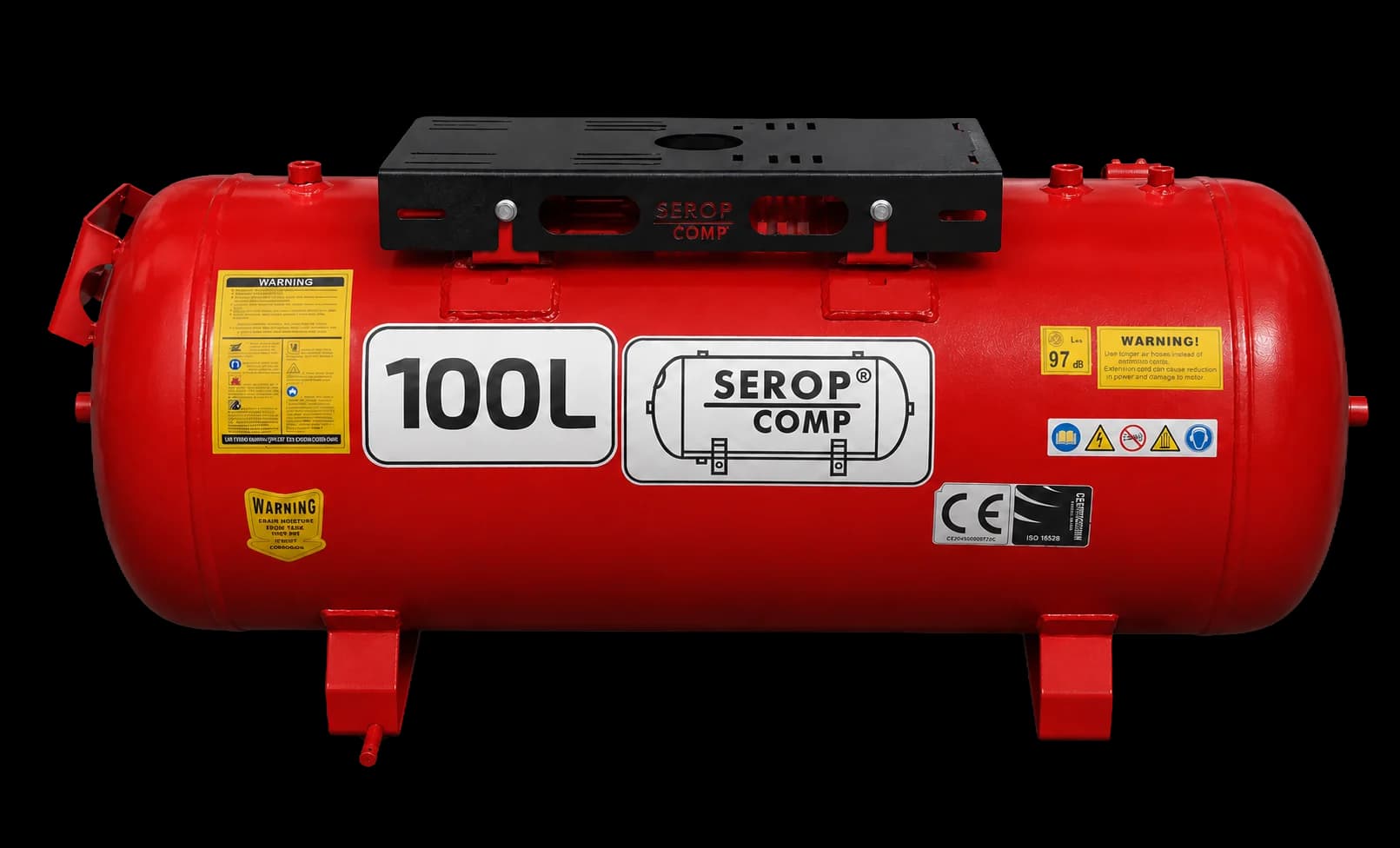

Horizontal Air Receiver 100L
Mid-small horizontal receiver for low-ceiling industrial and workshop environments.
- Capacity
- 100 L
- Working
- 11 Bar
- Test
- 48 Bar
- Motor
- 1.5–2 HP
HorizontalPainted

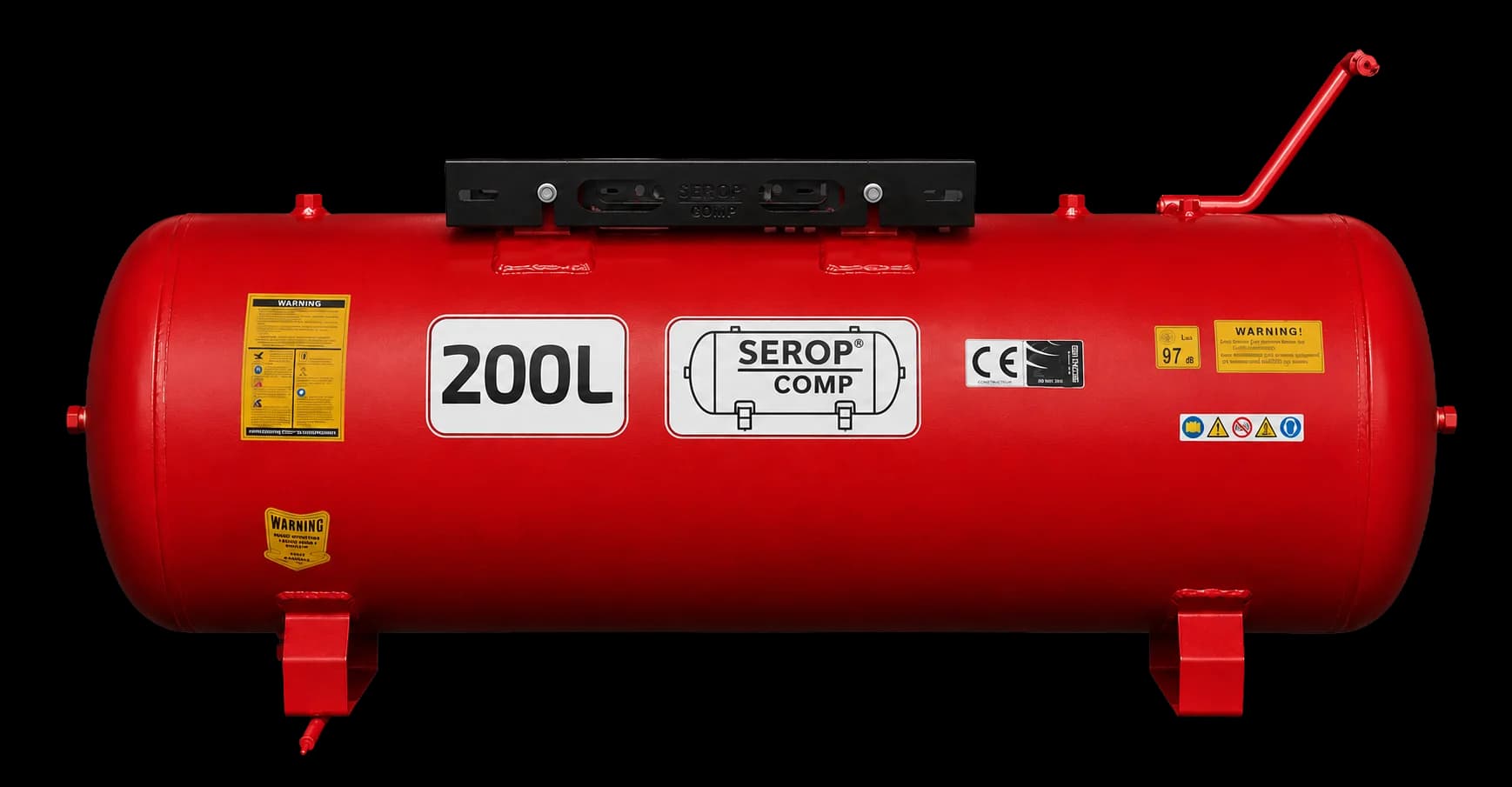

Horizontal Air Receiver 200L
Compact horizontal receiver for workshops with limited ceiling height.
- Capacity
- 200 L
- Working
- 11 Bar
- Test
- 48 Bar
- Motor
- 2–3 HP
HorizontalPainted

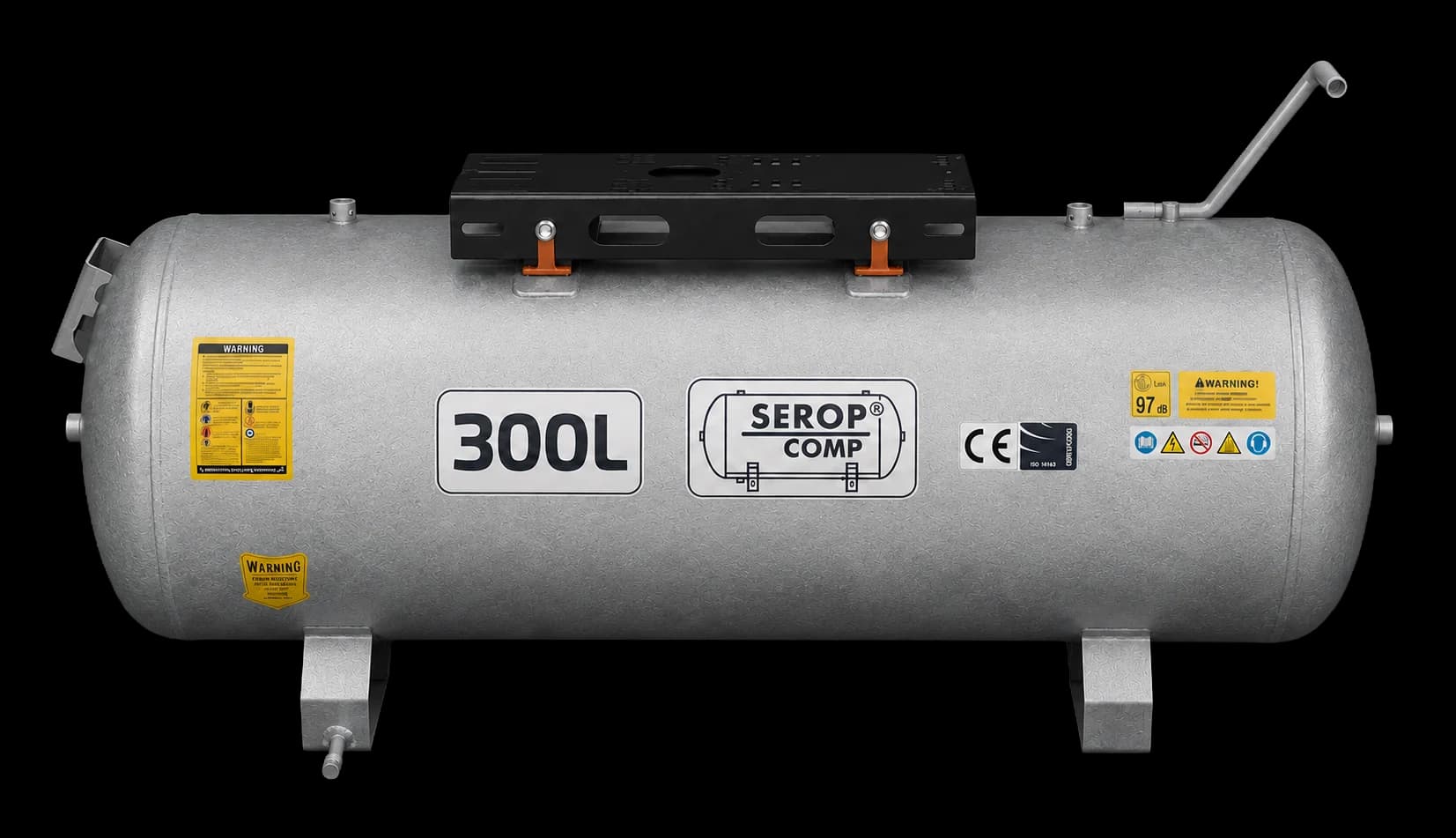

Horizontal Air Receiver 300L
Mid-capacity horizontal receiver available in painted and galvanized finishes.
- Capacity
- 300 L
- Working
- 11 Bar
- Test
- 48 Bar
- Motor
- 3–5 HP
HorizontalPainted

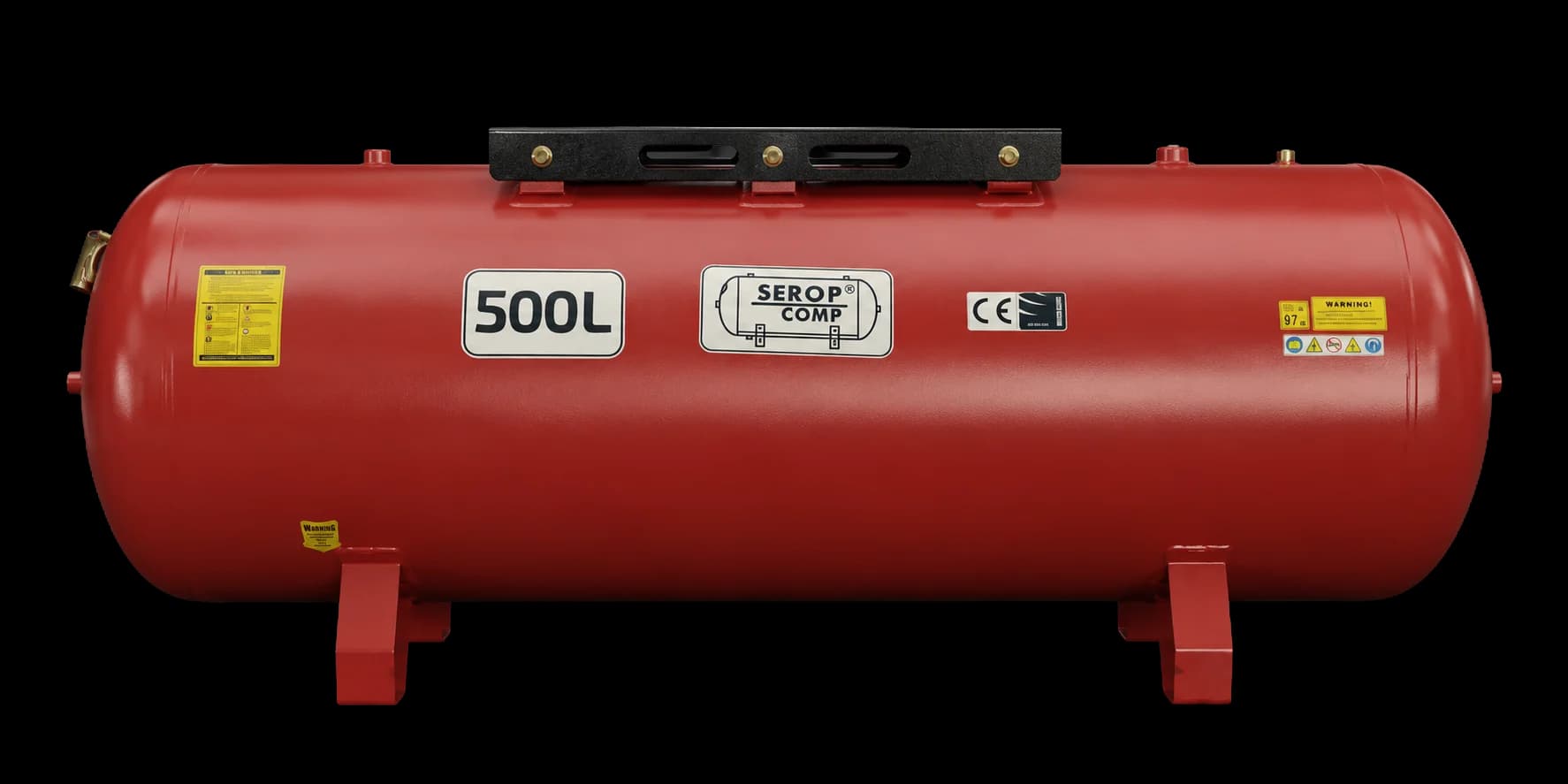

Horizontal Air Receiver 500L
Large horizontal receiver for industrial compressed-air systems with height restrictions.
- Capacity
- 500 L
- Working
- 11 Bar
- Test
- 48 Bar
- Motor
- 5–7.5 HP
HorizontalPainted
Horizontal Air Receiver 900L
High-capacity horizontal receiver for demanding industrial compressed-air systems.
- Capacity
- 900 L
- Working
- 11 Bar
- Test
- 48 Bar
- Motor
- 7.5–10 HP
HorizontalGalvanized
Horizontal Air Receiver 1000L
Extra-large galvanized horizontal receiver for corrosive or outdoor industrial environments.
- Capacity
- 1000 L
- Working
- 11 Bar
- Test
- 48 Bar
- Motor
- 10–15 HP
Get in touch
Need a custom configuration?
Capacity, working pressure, finish, ports, inspection openings, manholes, and layout can be engineered around your project.
